A DIY Guide to Custom Mechanical Keyboards


A mechanical keyboard is made with high-quality key switches underneath each keycap. They’re different from laptop keyboards and are likely what most people picture when they think of keyboards, with the classic sturdy look of desktop computer keyboards in the 1980s.

Mechanical keyboards are the number one choice for gamers and other computer enthusiasts. People enjoy building their own custom mechanical keyboards to fit their preferred specs, and this DIY touch comes with a sense of pride and accomplishment. So read on for a guide on how to purchase and assemble your own mechanical keyboard.

Table of contents
Mechanical keyboard trends
What you will need to build a mechanical keyboard
Things to consider before buying parts
Step-by-step guide

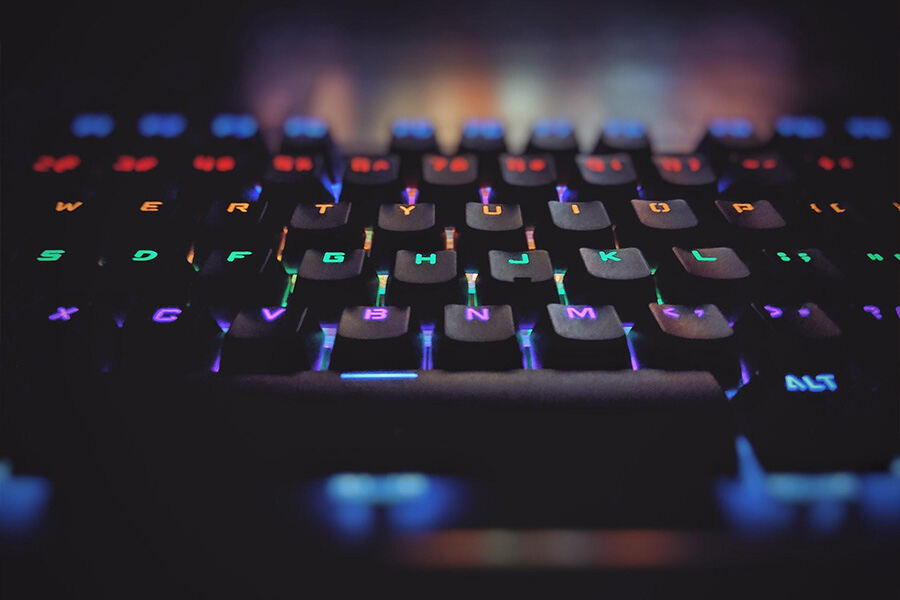

A custom keyboard
A custom keyboard

Alt text: mechanical keyboard for gaming

Mechanical Keyboard Trends

Many people prefer mechanical keyboards because they’re faster, more precise and responsive to keystrokes, more comfortable, and easier to type on. Plus, they last longer than membrane keyboards. Of course, mechanical keyboards have a few downsides – they’re heavier, louder and more challenging to clean.

Most PC gamers prefer mechanical keyboards because they’re more tactile, durable, and faster. When typing on a mechanical keyboard pressing down on a keycap activates a physical switch underneath that’s spring-loaded. So, when the key is pressed, you feel it and hear a ‘clicking’ sound to let you know you’ve pushed the key hard enough to register.

At the beginning of 2022, there were 2.8 billion active gamers worldwide, and Techjury predicts it will surpass 3 billion by 2023. Of those gamers, approximately 1.8 billion are PC gamers (gamers that use a PC rather than a console like Xbox or Playstation). One of the major reasons gamers are attracted to PC gaming is because of the customizability of computers.

The mechanical keyboard community on Reddit has 1.1 million members today, and the Build a PC community has 5.9 million members. This highlights the popularity of the DIY approach to computers, with mechanical keyboards being an essential touch.

mechanical keyboards best for gaming
Mechanical keyboards best for gaming

What’s needed to build a mechanical keyboard

Here are the parts and tools needed to build a custom mechanical keyboard:

Parts Required Options Available
Keyboard Case Plastic, Aluminum, Acrylic, Brass, or Polycarbonate Material
Plate Aluminum, Steel, Brass, Carbon Fiber, POM…
Circuit Board (PCB) Sizes: 40%, 60%, 65%, 75%, TKL, 1800-Compact, or Full-Sized
Keycaps Material: ABS or PBT

If you’re new to building computers, you may not have thought about some of the essential tools you will need to build your custom mechanical keyboard. These include:

There are some additional tools are nice to have and may make the project easier but aren’t essential. These include:

Gateron switches and Kailh switches: Which is better?

While you can’t necessarily go wrong with either brand, one may better suit your needs than the other. Let’s look at the pros and cons of Gateron and Kailh switches.

Gateron switches

Pros Cons
Smooth feelReliable and long-lastingCustomizable featuresRapid execution of keys May be too loud

Kailh switches

Pros  Cons
Fast keystroke responsesShorter travel and key activation distanceEasy to clean Scratchy feel

The main difference between these switches is that Gateron is more durable and has faster actuation force, while Kailh is more tactile.

Properties Kailh Switches Gateron Switches
Colors Black, brown, red, white, bronze, copper, silver purple Clear, red, black, blue, green, brown
Peak actuation 60g 80g
Lowest actuation point 27g 35g
Behaviors Linear, tactile, clicky Linear, tactile, clicky

Things to consider before buying parts

Before buying parts, you must first consider what you’re looking for in a mechanical keyboard. You’ll need to figure out:

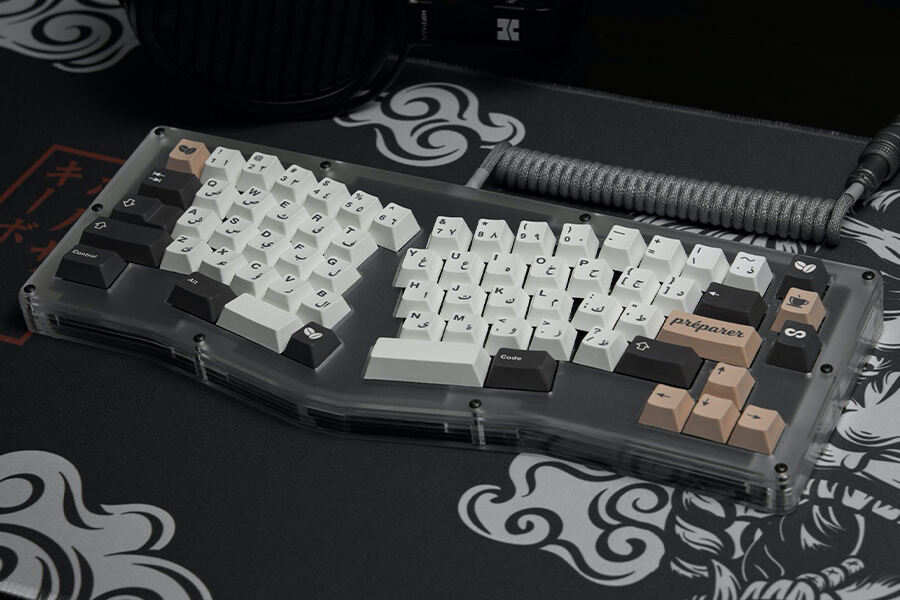

custom mechanical keyboard shapes
Custom mechanical keyboard shapes

And you might also want to consider shipping times if you buy all the parts individually.

building custom mechanical keyboard
Building custom mechanical keyboard

Step-by-step guide to building a custom mechanical keyboard

Once you have all the parts and tools, it’s time to start building. Here is a step-by-step guide to building your custom mechanical keyboard.

Step 1: Test the PCB to make sure it works

Before putting it together, you want to ensure everything is working to ensure you didn’t receive a product with any defects.

You can test the printed circuit board (PCB) by using this free site which allows you to test each switch and key on your keyboard.

Step 2: Lube the switches (Optional)

While this step is optional, lubing the switches is one of the most significant upgrades you can make to your mechanical keyboard build. It will significantly improve how the switches feel by reducing spring ping noise, improving keystrokes, and reducing scratchiness.

You need to pull apart every switch and apply lube to the lower housing, spring, stem, and upper housing. It will take a few hours, but it’s worth it.

Step 3: Install stabilizers in the PCB

Install stabilizers into the PCB. Make sure they’re placed in the correct areas because it will be challenging to move them later.

Step 4: Install switches into the plate & PCB

Press the switches into the plate and allow the pins to enter the PCB. Ensure everything is located correctly and none of the pins are bent.

Step 5: Solder switches

Next, solder the switches (unless you have a hot-swappable PCB). Slowly work through each switch and solder the two metal pins to the PCB.

It can be a bit intimidating for those who have never soldered before, so consider learning first on a may pad. It’s a great way to understand how to solder and practice making the perfect-sized beads.

When soldering, ensure you’re in a well-ventilated area and have all the necessary tools.

Note: Make sure to re-test the PCB to ensure everything is working after all the switches have been soldered.

Step 6: Add foam and rubber feet to the case

The case should come with rubber feet (unless they’re pre-installed). It’s best to install them at this stage, and your keyboard case should come with simple instructions.

The foam is optional, but it can improve the keyboard’s acoustics.

Step 7: Install the assembled PCB into the case

Typically, installing the PCB simply involves screwing the PCB into the case. However, depending on the case mounting style, it could be different. See the keyboard instructions for assembly.

In this step, you want to ensure the PCB is centered in the case and doesn’t shake after installation.

Step 8: Install the keycaps

Installing the keycaps is the most exciting part as it brings the mechanical keyboard together. Make sure to install them in the right place.

Step 9: The typing test

The final step is the typing test to ensure everything is working correctly and feels good to use.


Mechanical keyboards are becoming increasingly popular because they provide a better typing experience. They’re especially popular among the PC gaming community, who are inclined to build their own computers to fit their personal needs.
Learning how to build a custom mechanical keyboard is a great first step in learning how to build a custom computer. All the necessary parts, including switches, stabilizers, circuit oard (PCB), keycaps, and keyboard plate and case can be found at great prices when bought in bulk and wholesale on Alibaba.com.
