The wood industry’s focus on producing durable furniture that can be harmoniously placed alongside other furniture types has meant that the corner of wooden furniture is often reinforced or covered with a band of edging tape.
Table of Contents
A Short Overview of Edge Banding Machines
Components of Edge Banding Machine
Main Functions of Edge Banding Machines
Workflow of the Edge Banding Machine
Classification of Edge Banding Machines
Benefits of Using Edge Banding Machines
Types of Wood Processed by Edge Banding Machines
A Finished Wood Effect with Edge Banding Machines
Edge banding machines exist to improve the structure of wooden furniture edges, as although wood is a sturdy material that can absorb or emit moisture, its core structure cannot be altered.
A Short Overview of Edge Banding Machines
The edge banding machines in the wood cutting sector are considered solution-oriented and tailored inventions dedicated to providing industrial ease to manufacturers.
This technology ca be integrated into many networked production lines, including those available at highly industrialized furniture manufacturers. Additionally, it can function as a stand-alone machine for advanced craftsmen working in modern industries.
Edge banding may not be considered a scientific masterpiece, however, the prioritization of comfort and perfection in manufacturing give it an important position. This can be seen by the many experts stating that the integration of edge banding machines is preferred when working in bulk production, as it can aide speed and ease when a manufacturer must carry out the edge banding process several times.
Components of Edge Banding Machine
Some of the core components of edge banding machines include:
- Pressure rollers
- Tracking pads
- Buffing wheels
- Edgebander press
- Conveyor Chain Pad
Main Functions of Edge Banding Machines
Some of the most important functions of edge banding machines in the furniture industry include:
- Pre-Milling
The double cutter in the edge banding machine modifies ripple or burr marks on the furniture. These can appear due to an incorrect usage of a cutting board saw. Thus, an important function of edge banding machines is to provide a better edge sealing effect to the manufactured. Furthermore, the double cutter enables the edge banding plate to fit correctly into the machine.
- Finishing
Thanks to automatic tracking and a high-frequency speed motor, edge banding machines are renowned for ensuring the smoothness of the upper layer of the trimmer plate, with the lower layer of the trimmer plate being no exception.
In addition, edge banding machines are famous for being able to repair and process the surplus edge sealing materials, adjusting them above and below the edge banding strip.
- Profile Tracking
This device moves over both the upper and lower parts of the furniture to add cutting edge accuracy and an enviable finish to the final product.
- Slotting
Another amazing function of the edge banding machine is that it reduces the work for the cutting saw. It does this by slotting together the upper and lower plates of certain pieces of furniture, such as a wardrobe.

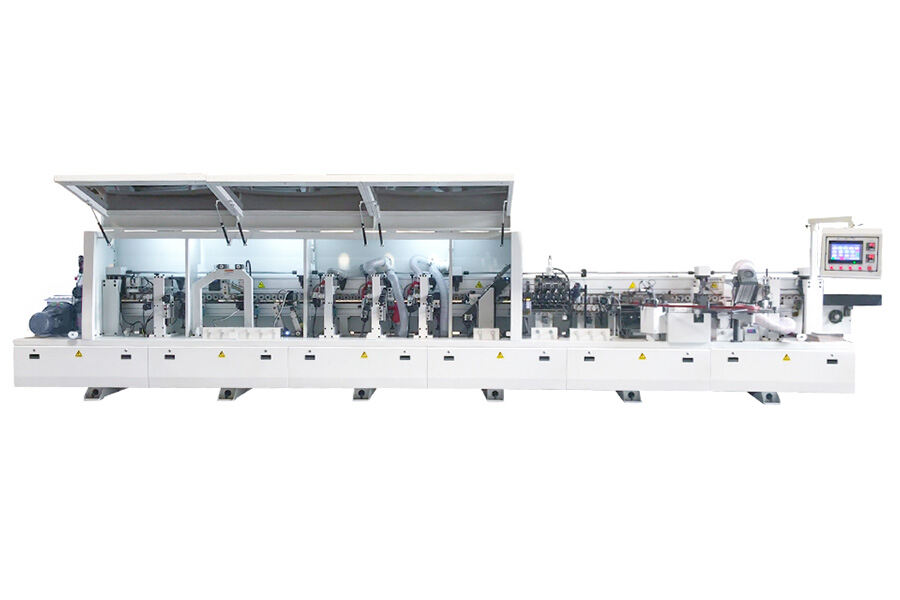

The MFZ613 Automatic Bevel and Straight Edge Banding Machine
The MFZ613 automatic edge banding machine greatly improves processing capacity and production efficiency by shortening the auxiliary working time. In addition, this machine saves on cost by reducing the number of traditional machine tools needed, saving on the number of operators required, and reducing the necessary floor area of the workshop.
So, the MFZ613 automatic bevel and straight edge banding machine offers:
1. Improved processing capacity and production efficiency
2. Improved wood yield
3. Improved product quality and processing precision
4. Expansion of the technological range and an increase in product variety
| Overall dimensions | 8350*910*1540mm |
| Min panel side | 300(L)*60(W)150(L)*150(W) |
| Feed speed | 15-23m/min |
| Edge thickness | 0.2-3mm |
| Panel thickness | 10-60mm |
| Panel length | ≥150mm |
| Panel width | ≥60mm |
| Working air pressure | 0.6Mpa |
| Weight | 2950kg |
| Total power | 20.44kw |
Workflow of the Edge Banding Machine
The workflow of the automatic edge banding machine is related to the feeding mechanism, as well as the edge banding conveying and gluing mechanism. Other than these factors, the workflow also utilizes a pressing roller, milling device, and sanding mechanism.
All that is needed on the human side is to adjust the operator. Following this, simply feed the workpiece into the machine through a conveyer belt and the tracking system will automatically track the movement of the workpiece. At the same time, the machine will press the edge banding strip with the help of its pressure rollers and then help sand the product for the final finish.
Classification of Edge Banding Machines
There is no doubt that edge banding machines are an essential accessory in the woodworking industry. However, as there are three different classes, it is important to know which one is needed:

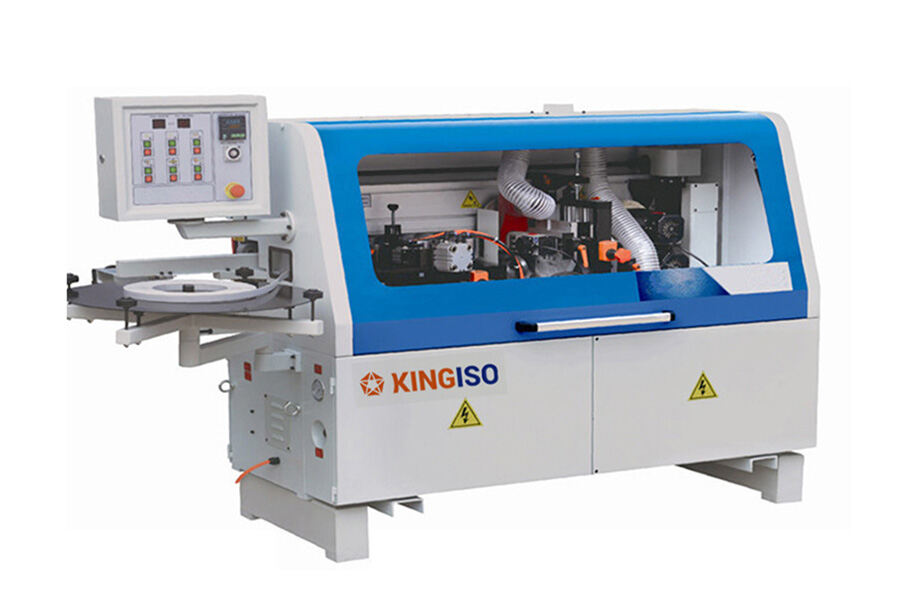

This type of edge banding machine is suitable for banding or trimming medium density wood materials. These can include fiberboard, joinery board, solid wood board, and particleboard. It is also available with a double-sided glued edge banding mechanism.

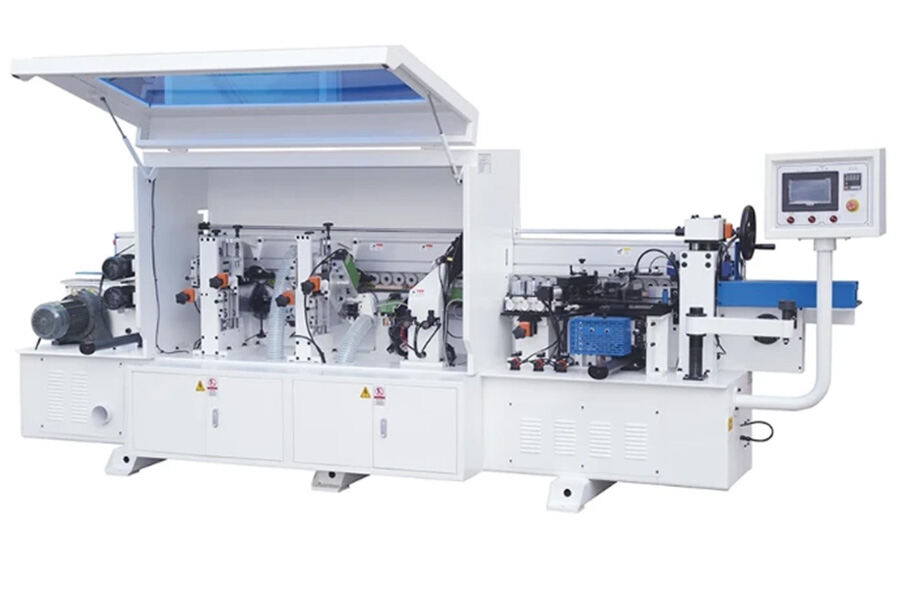

This type of edge banding machine is suitable for the edge banding of particleboard and fiberboard only. It offers automatic functions for conveying, belt feeding, milling, and polishing wood.

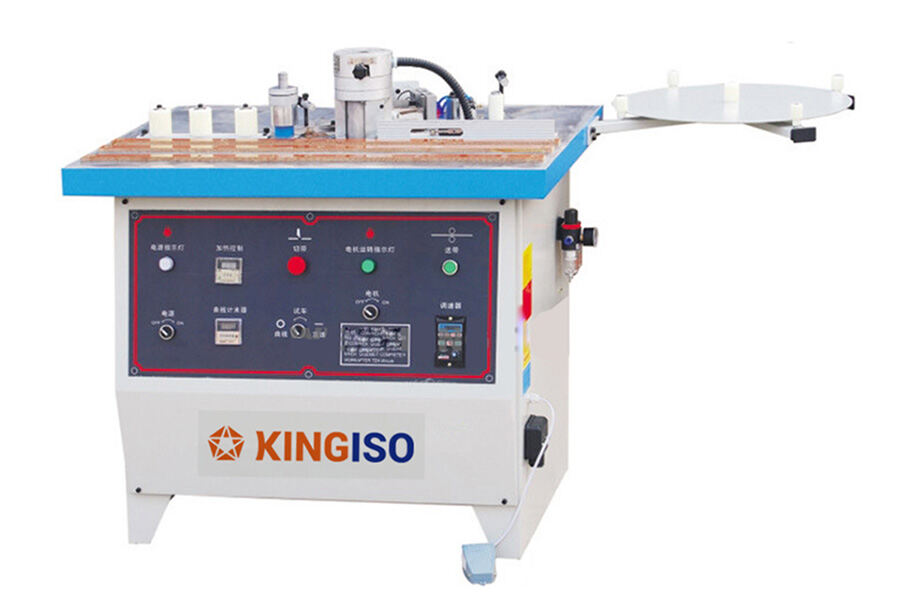

This type of edge banding machine is necessary to process the straight plate lines and treat the irregular borders of furniture. In order to function properly, it requires the installation of fixed bracket accessories.
Benefits of Using Edge Banding Machines
Some common benefits of edge banding machines include:
- Helps manufacturers produce furniture of varying shapes and sizes
- Plays a leading role in increasing precision and accuracy
- Provides a great finish
- Cleans and polishes sheet wood
Types of Wood Processed by Edge Banding Machines
Edge banding machines offer great flexibility in terms of workable wood types. Some classes of wood that can easily be processed with edge banding machines include:
- Plywood
- MDF
- Particleboard
- Wood veneer
In addition to wood, these machines also cater for some other materials, including:
- PVC
- ABS
- Acrylic
- Melamine

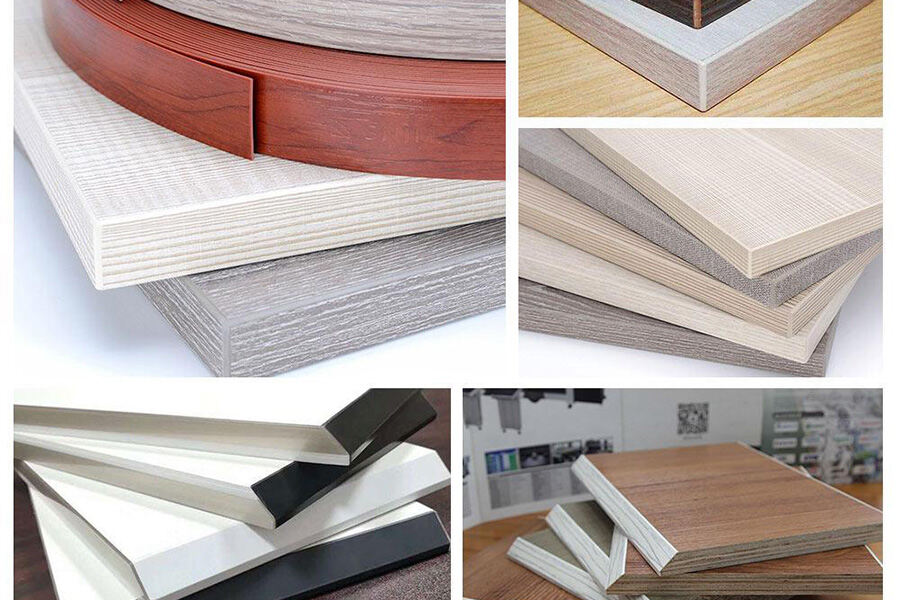

A Finished Wood Effect with Edge Banding Machines
The main reason for adding a cutting-edge finish to wood is to increase its durability. In addition, it enhances the overall appearance of the solid material, making it suitable to many different settings and increasing its appeal.
The finished wood effect produced by edge banding is achieved by covering the exposed sides of the materials. Products made up of plywood, particleboard, or MDF can all be covered.
Conclusion
From the above discussion, it is obvious that the importance of edge banding machines cannot be underestimated. In fact, several manufacturing industries around the globe are already using this technology to improve their woodworking results. So, be sure to purchase an edge banding machine to revolutionize your working efficiency.
As one of the largest woodworking machinery exporters in China, KINGISO can provide woodworking machines with factory prices and a one-stop purchase service. All of KINGISO‘s machines are tested before delivery to ensure quality and service.
If you want to know more about KINGISO’s products and factory, or if you have questions about woodworking machinery, please feel free to contact us today.
